Introduction:

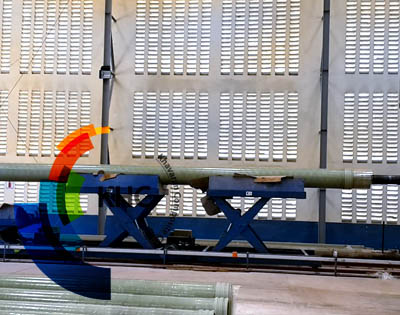

Pipe Branch Transfer Trolley designed for transferring pipe all around the factory and it will solve the same time transferring multi pipe branch problem all around the production area. trolley have different design type. one is movable trolley and the other type is fix trolley design .
Trolley system for Pipe with mold transfer are available for DFW production line too. it use in DFW production line site to make this transportation easier and faster.

Process Explanation:

Fix Pipe Branch Transfer Trolley, mounting all around transportation area. it will work by operator start and stop using system. a pipe release support from trolley will use in pipe release require area.it can use as temporary stock during different cycle too.

Movable Pipe Branch Transfer Trolley able to transfer branch to any require area. but each trolley is able to handle one pipe at a time. this system not take a lot of area around the production site and have completely adjustable movement. this trolley have pipe release system too.

Trolley for Pipe and mold transfer system is a movable version which designed to have a higher weight capacity to transfer the molds too. this system mount ont on ground and have adjustment control to transfer pipe and mold in different size .

Feature:

Control box and remote control system are most important feature which help to manage transportation all around the site.

Area requirements:

Pipe Transfer Trolley Width = 1.5 meter
Pipe Transfer Trolley Length = 6 meter (Movable model)
Pipe Transfer Trolley = 1.5 meter

Utilities requirements:

Maximum Power Consumption = 5 kW

Operators requirement

One person as supervision for all Line Auxiliary Equipment
One person as machine captain per shift
