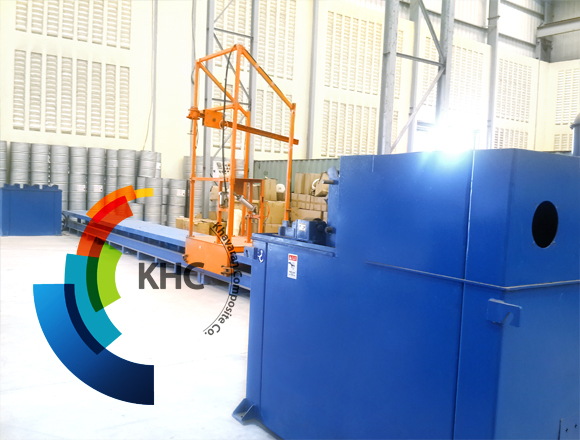

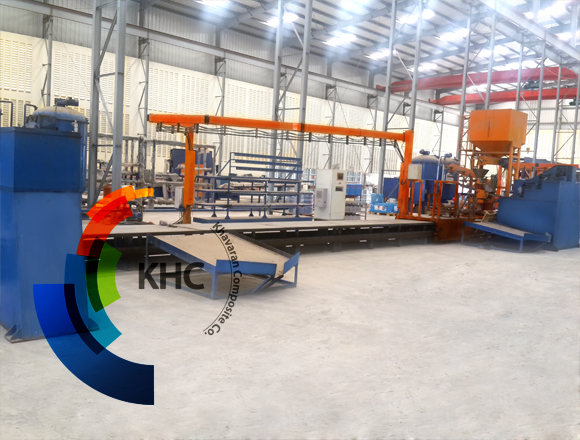

DFW (Discontinuous filament winding) machine, is designed to manufacture GRP Pipe (Glass reinforced polyester pipe) with easy method and wide range of products. DFW machine is PLC base which have full control on all device of machine during Production of pipe. This advance machine producing pipes by using multi technology like Filament winding technology, multi layer composites structure, Fast Cross-link polymers and etc.
DFW Machines is Ideal choose where require low investment for producing GRP pipes with range of from 80 mm diameter up to 4000 mm diameter, pressure class between 1 up to 32 bar and stiffness class between 1000 up to 10000 Pascal.
This machine production pipes specially use for Potable water transport, raw water transport, sewerage collection systems, irrigation water transport systems, wide range of industrial liquid material transport applications, petrochemical transport line both at undergrand and aboveground installation
A film of material is applied to the mould and, thereafter, the first plies of special glass reinforcements are laid up and retain a very high percentage of corrosion resistant resin. This operation enables a fully impermeable wall to be obtained with a high resistance to chemicals.
To prevent dropping of resin from mould and reducei the quality of produced Liner curing operation is carried out while the mould is rotating in its own axis. Curing of liner is made with adding resin agents with special ratio and using infrared ray by using electrical IR lamps.
The structural part of the pipe is made by the filament winding of continuous glass yarns (roving) impregnated with resin. The pitch of the winding is spiral thereby, the angle formed between the layers and the axis of the pipe are determined during the design work and depends on the stresses to be withstood. At the same time as filament winding is taking place.
a separate system adding filler (like silica sand), roving fibers and resin as layer during production of pipe to meet the stiffness factor of pipe.
mould is rotating in its own axis while Curing of pipes is made with adding resin agents with special ratio and using infrared ray by using electrical IR lamps.

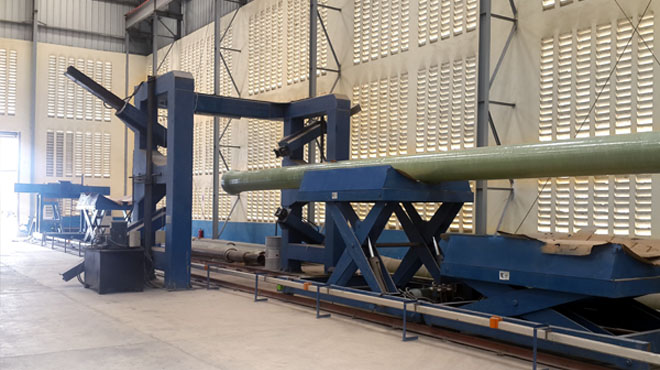

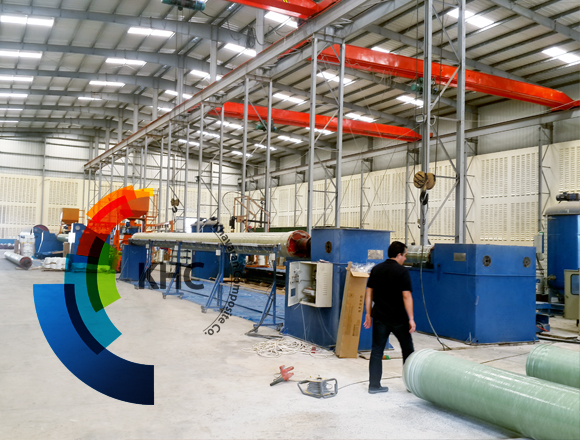

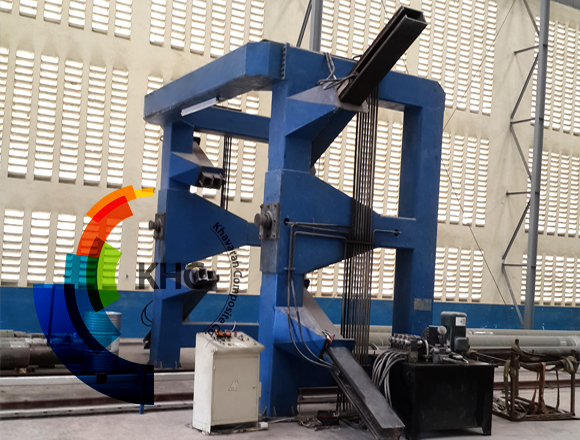

The cured pipe bar should extract from the mold , this operation takes place in Extraction system. this system is a dedicated working station controlled by a system which allows to automatically carrying out the different working steps.
Pipe Diameter: From 250 up to 600/1200 mm
Pressure Range: From 1 up to 32 bar
Stiffness Class: 2500, 5000 and 10000 Pascal
Machine Width: 15 meter
Machine Length: 25 meter
Machine Height: 3 meter (under crane hook)
Max. Power Supply: 3 x 400 V / 50 Hz
Max. Power Consumption DFW 1200: 80 Kw
Max. Compressed Air Consumption: 6 bar - 3 m3/min
4 control captain
4 winder operator
2 extractor operator
1 pipe transfer operator
2 roving rack operator
Pipe Diameter: From 250 up to 2600/3000 mm
Pressure Range: From 1 up to 32 bar
Stiffness Class: 2500, 5000 and 10000 Pascal
Machine Width: 15 meter
Machine Length: 35 meter
Machine Height: 4 meter (under crane hook)
Max. Power Supply: 3 x 400 V / 50 Hz
Max. Power Consumption DFW 2600: 120 Kw
Max. Compressed Air Consumption: 6 bar - 3 m3/min
4 control captain
4 winder operator
2 extractor operator
1 pipe transfer operator
2 roving rack operator
Pipe Diameter: From 300 up to 4000 mm
Pressure Range: From 1 up to 32 bar
Stiffness Class: 2500, 5000 and 10000 Pascal
Machine Width: 15 meter
Machine Length: 45 meter
Machine Height: 6 meter (under crane hook)
Max. Power Supply: 3 x 400 V / 50 Hz
Max. Power Consumption DFW 4000: 180 Kw
Max. Compressed Air Consumption: 6bar - 4 m3/min
4 control captain
4 winder operator
2 extractor operator
1 pipe transfer operator
2 roving rack operator
It is ideal choice when the GRP pipes are used for water transmission and distribution, desalination plants, cooling systems in power plants, irrigation projects and sewage systems.
LINE CAPACITY:
The production machine capacity is 100 km/year of DN 800 mm PN 6 bar pipe (based on 300 production days / year, three shifts).
production speed up to 20 meter per hour with constant level of pipe quality during production cycle
Online monitoring of live production summery and instrument statues
CONTROL SYSTEM:
D.F.W Machine powered by a fully PLC base control system. All machine instrument, operations and dosing systems are controlling by computer.
Powerful archiving which provide all production data consisted of product design, amount, date production speed and machine calibration specification available in computer archive.
DESIGN SOFTWARE:
PC Software for design pipe that allow engineer to adjust pipes according customer requirement with different raw material
