Pipe Hydro Static Test Machine


Pipe hydro static Test is performed on pipe Hydro test Machine. Pipe hydro test machine is designed and constructed to allow the hydro static tests on GRP pipes, according to all major international standards.
Pipe Hydro Static Test Machine able to perform the test on pipe branch between in all diameter size, 6 up to 12 meter length and up to 64 bar internal pressure.

Process Explanation:

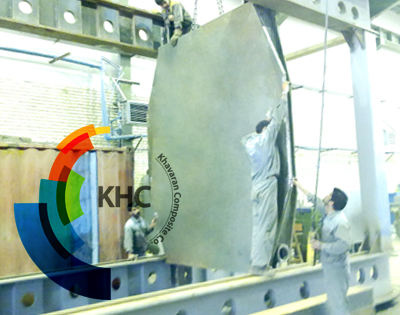

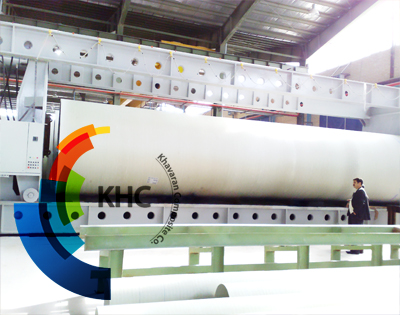

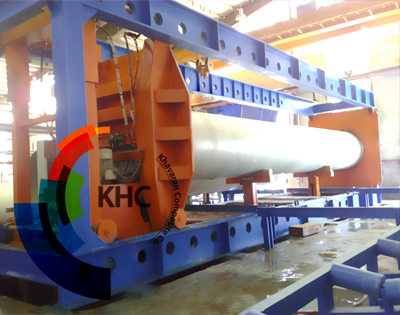

The pipe is rolling on supports to be enter on the Hydro test Machine. pipe branch standing on lifting tables that placed on center of machine between two heads. it is inserting between sealing plates and closing by hydraulic unit. The pipe Hydro Static test is performing by water pressure unit. After the test pipe is releasing from the sealing plates by hydraulic cylinder.

Every testing result consist of time and pressure detail, date of testing, pipe details, series and result of test will be archive on machine with exportable format.


Hydro test Machine is PLC base fully automated machine. all operation consist of pipe centering, pipe sealing, filling and pipe releasing are fully Automate. The testing pressure and time can be easily adjust and check on the Control panel and measurement equipment, which is also part of the machine.

Optional Add-on:

Some installation area is not possible to constructing Concrete pool bottom of machine for storing the testing water. so designing a storage tank in side of machine are available

Area requirements:

Pipe hydro test machine Width = 4.5 meter
Pipe hydro test machine Length = 15 meter
Pipe hydro test machine Height = 4.5 meter

Utilities requirements:

Maximum Power Consumption = 15 kW
Maximum Compressed Air Consumption = not require

Operators requirement

One person as supervision for all Test Equipment
One person as machine captain per shift
One person as machine operator per shift
